Cartridge Rolls Range Cylindrical (No Shank)
| Type | ||
| A | B | C |
 |  |  |
| Aluminum Oxide： | Zirconia： |
| ▶ Aluminum Oxide Type A：Cylinder Shape | ▶ Zirconia Type A：Cylinder Shape |
| ▶ Aluminum OxideType B：Conical Shape | ▶ Zirconia Type B：Conical Shape |
| ▶ Aluminum OxideType C：extra-long conical shape | ▶ Zirconia Type C：extra-long conical shape |
| ▶ For grinding and polishing on metals and other materials | ▶ For grinding and polishing on metals and other materials |
| ▶ Raw Material：Aluminum Oxide 609 | ▶ Raw Material：Zirconia |
| ▶ Material can be worked with: Aluminium, copper, brass, various typeof iron, steel, hardened metal | ▶ Material can be worked with: Aluminium, copper, brass, various typeof iron, steel, hardened metal |
| Advantages： |
| ▶ High performance capacity with long tool life |
| ▶ Can apply in complicated parts, e.g small U curve surface, small inner holes |
| ▶ Easy changing and effcient |
| Applications： |
| ▶ Burr treatment of drilled holes and hard-to-reach areas |
| ▶ Remove fillet welds on metal structures |
| ▶ Burr processing of castings |
| Recommendations for use： |
| ▶ Keep the tip instead of the surface for grinding during use, otherwise the adhesive will be damaged by the heat generated |
| ▶ Always position the emery cloth roll with the adhesive surface towards the mandrel |
| ▶ For safety reasons, the grinding must always be kept within the specified maximum allowable speed range |
Specification
| Brand | KEYING | Origin Country | China | ||

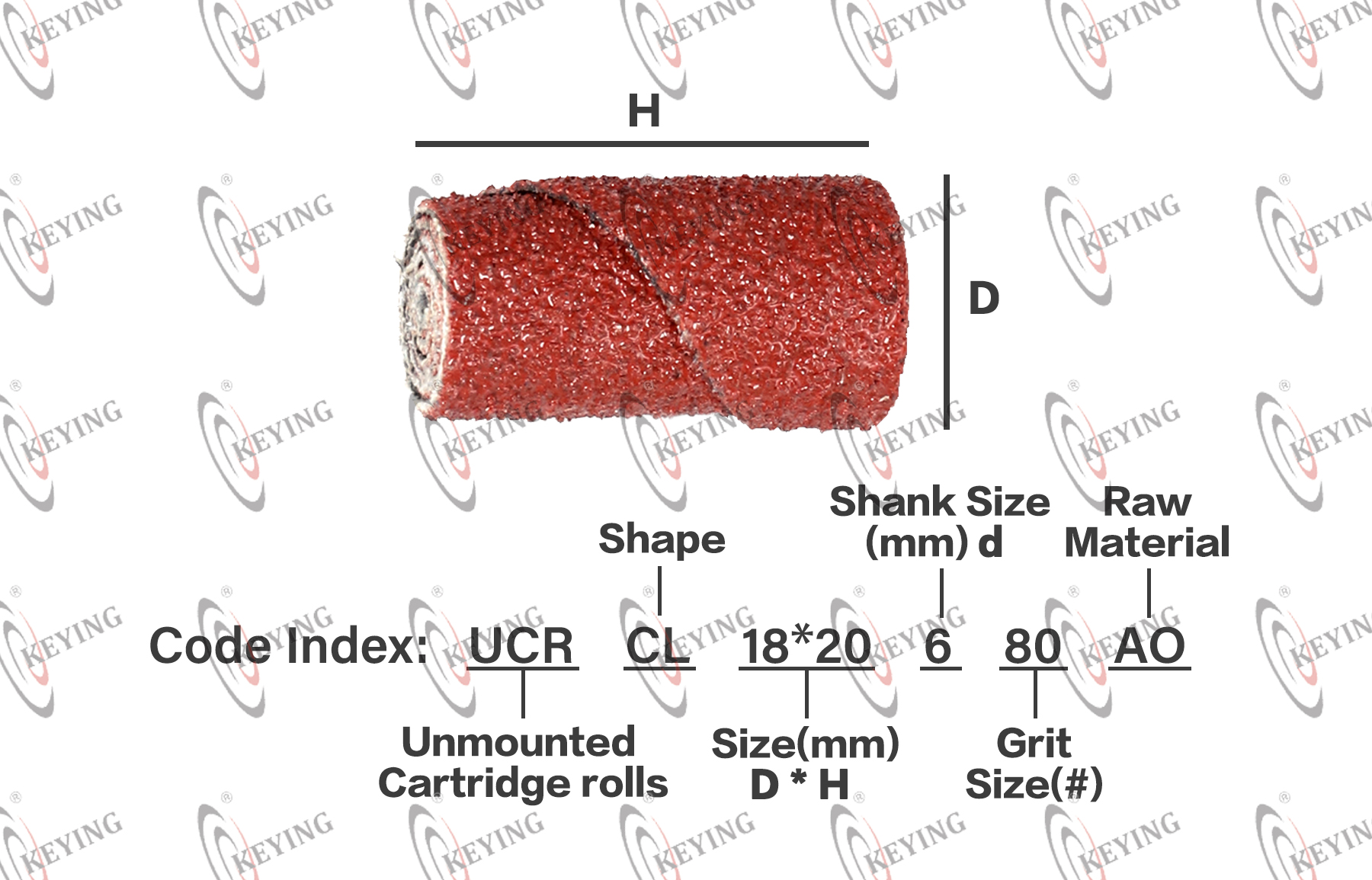

| Product Code | CRZ + 20*38 + 120 + AO ↓ ↓ ↓ ↓ Cartridge Roll Size(mm) D * H * d Grit(#) Raw Material | Speed | 12000RPM~25000RPM | ||
| Outer diameter | Diameters smaller than 25mm are available in stock, larger than 25mm need to be customized | Grit | 40#~600# | ||
| Applicable Tools | Electric tools, pneumatic tools, electric grinders, manipulators and other tools | ||||
