Spherical Mounted Flap Wheel
Advantages
1. High-Performance Grinding Power: Made with premium silicon carbide abrasives and a cloth-backed base, providing strong grinding capability suitable for high-precision machining.
2. Stable Synchronous Wear: The layered flap design is evenly bonded, preventing looseness during high-speed rotation, ensuring a consistent grinding effect.
3. Long Service Life: High-precision cutting technology and superior materials enhance durability, reducing the risk of chipping or breakage, and extending lifespan.
4. Low Dust Generation: Optimized design minimizes dust emissions, improving the work environment and meeting environmental standards.
Applications
High Cost-Effectiveness: Combines premium materials with advanced manufacturing techniques, delivering excellent performance while remaining economical and affordable.
Casting Surface Processing: With strong grinding power, it efficiently removes rough surfaces on castings, ensuring stable wear, low dust generation, and an improved working environment.
Hardware & Metal Component Processing: Provides precise grinding and deburring, enhancing surface quality. The high-quality materials ensure powerful grinding performance and uniform finishing without abrasive shedding.
Automotive, Aerospace, Rail, and Shipbuilding Manufacturing: High-precision cutting prevents chipping and breakage, while imported adhesive bonding ensures strong adhesion. The tool remains secure at high-speed rotations and offers a long service life, meeting the demands of high-precision machining.

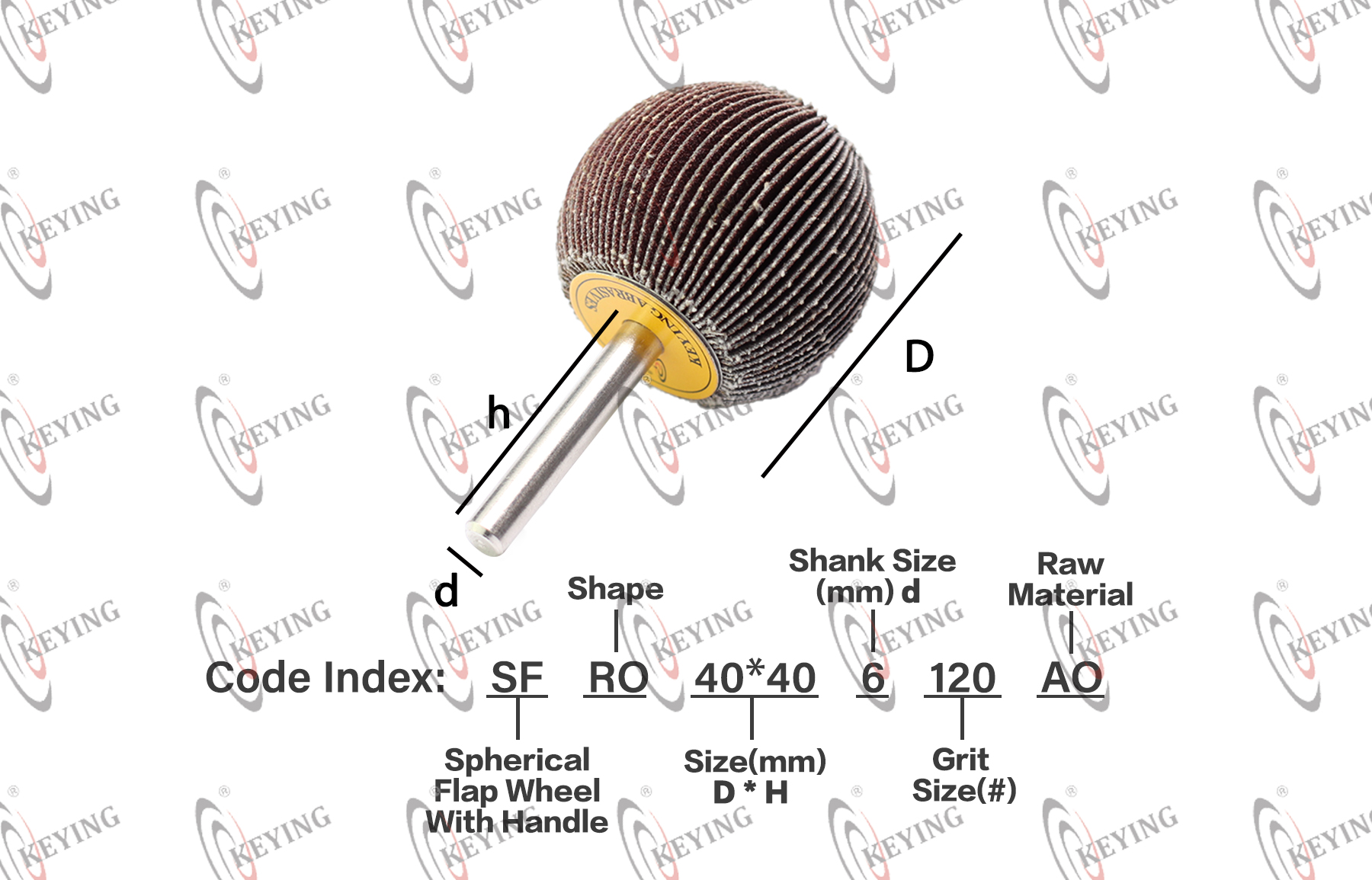

| Brand | KEYING | Origin Country | China | Product Code | SF + 40*40*6 + 120 + AO ↓ ↓ ↓ ↓ Spherical Mounted Flap Wheel Size(mm) D * H * d Grit(#) Raw Material |
| Handle Length | 35mm Other length can be customized | Diameter | 30~60mm | Raw Meterial | Aluminium Oxide |
| Inner Hole Size | 6mm 6.35mm | Package Standard | 100pcs | Cloth Type | High Quality Domestic Cloth Imported Cloth |
| Maximum Speed | 25000RPM | Grit | 80#、100#、120#、180#、240# | ||
| Application | Polishing and mirror polishing, marble polishing, metal workpiece mirror polishing, cleaning non-ferrous metal surface, the last step of polishing, cleanliness to achieve mirror effect | ||||
| Applicable Tools | Electric tools, pneumatic tools, electric mill, manipulator and other tools | ||||
| Applicable Materials | Stainless steel, non-ferrous metal, aluminum alloy products, glass, etc | ||||
| Applicable Industry | Machinery processing, hardware, casting, auto parts, aviation, high-speed cars, ships and other high precision processing manufacturing industries | ||||
| Grit Guide | ||||||||
| 40 | 60 | 80 | 120 | 180 | 240 | 320 | 400 | 600 |
| Preliminary processing of severe surface scratches | | | | | | | | |
| Remove rough burrs or bumps | | | | | | | | |
| Grind deeper kaser engraving marks or a brasive groove faces | | | | | | | | |
| Clean up rust, nicks or welds | | | | | | | | |
| | Pre-painting before painting | | | | | | | |
| | Medum-term polishing and smoothing | | | | | | | |
| | | Sight scratches or brushed finishes | | | | | ||
| | | | | Fine grindng and polishing | | | | |
| | | | | | Finishing and translucent processing of various metal surfaces | | ||
| | | | | | | | Mirror processing | |
