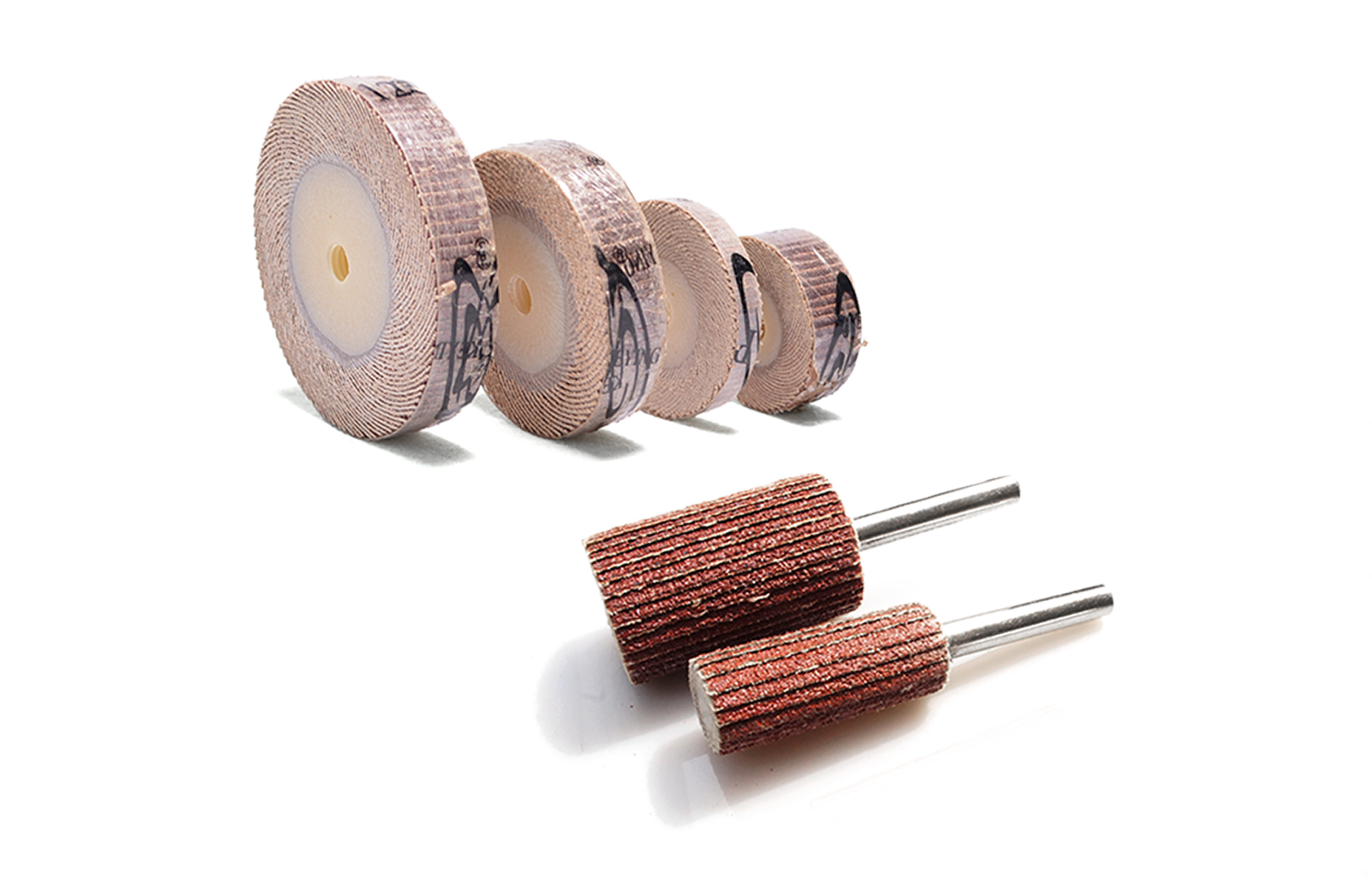

  • Non-standard Custom Unmounted Flap Wheel

    KEYING Unmounted Flap Wheel has three raw materials to choose from, so they can meet most customer needs. Different raw materials have different uses, you can choose according to your needs, we list the characteristics of these raw materials for your reference in the following introduction.

    1.Aluminium Oxide (AO)

    • It can grind and polish the workpiece surface to achieve better polishing effect.
    • It can be used for grinding and polishing of workpiece surface of various materials.
    • It is a commonly used grinding and polishing abrasive for workpiece surface polishing.

    2.Silicon Carbide (SC)

    • Silicon carbide is a kind of synthetic abrasive particle with sharp edge, low toughness and high hardness.
    • Suitable for use in the aviation industry, especially silicon carbide is the only approved abrasive such as for engine parts.
    • It is often used to process hard alloy, titanium alloy, high speed steel tool and other hard grinding materials.

    3.Zirconia (ZR)

    • It can grind and polish the workpiece surface to achieve better polishing effect.
    • Mainly used for processing steel, cast steel, non-ferrous metals, cast iron, plastic and other materials.
    • To meet the special needs and related requirements of aviation, automotive, electronics, communications and other ceramic applications.


    Specification

    Brand

    KEYING

    Oringin Country

    China


    Product Code

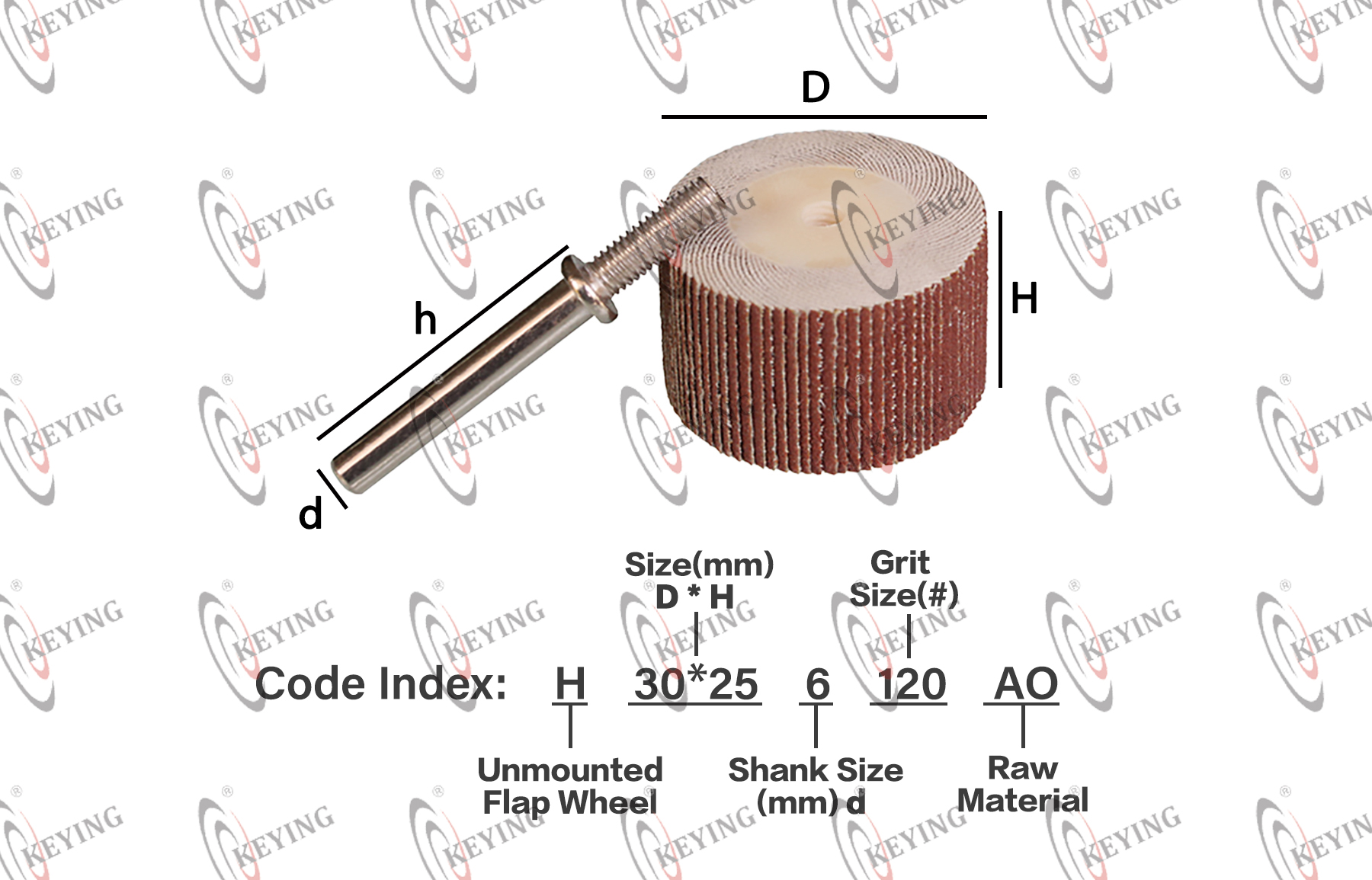

    H + 8*8 + 3 + 320 + AO ↓ ↓ ↓ ↓ ↓ Umounted Flap Wheel Size(mm) D * H Shank Diameter(mm) d Grit(#) Raw Material

    Applicable Tools

    Power tools, pneumatic tools, manipulator and other tools

    Application
    Metal surface treatment, rust removal, deburring, cleaning welding scar, cleaning coating, polishing, paint removal and pretreatment
    Applicable Materials
    Stainless steel, metal, non-ferrous metal, aluminum alloy products, cast iron, etc
    Applicable Industry
    Mechanical processing, hardware industry, foundry industry, auto parts, aviation industry, high-speed train, shipbuilding industry, other early finishing industries












    Find OEM Available Features Below:

    Height 4mm~25mm (Other sizes can be customized
    Shank Length 30mm/35mm (Other sizes can be customized
    Diameter
    8mm~50mm (Other sizes can be customized
    Shank Size 3mm/3.175mm/6mm/6.35mm/8mm/10mm Other sizes can be customized
    Raw Material
    Aluminium Oxide/Zirconia/Silicon Carbide (Please contact us for more)


    Service and Support

    National Toll-Free Hotline: +86 (0)576 86711667

    Landline: +86 (0)576 86711667

    Sales Manager Phone: +86 15067699991

    Email: info@kytools.cn

    Address: No. 7, Songshan Road, Wenxi Industrial Zone, Wenling City, Zhejiang Province, China
    Post Code: 317527

    Business Hours:

    Monday to Friday: 9:00 AM - 6:00 PM

    Saturday to Sunday: 10:00 AM - 4:00 PM

    (Closed during National Day and Spring Festival holidays)

    Non-standard Custom Unmounted Flap Wheel

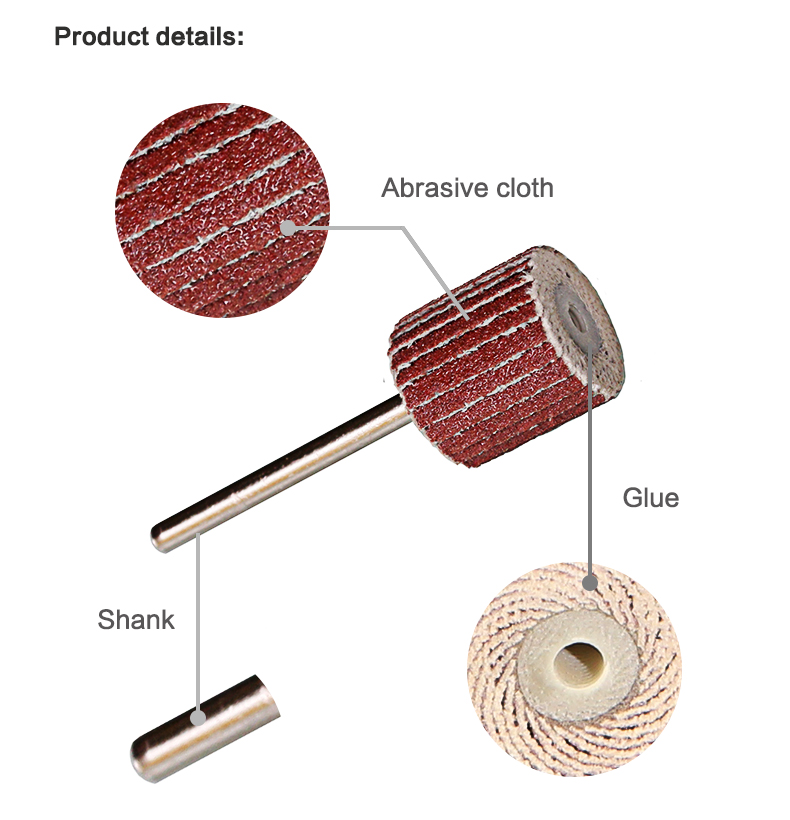

    KEYING Unmounted Flap Wheel has the characteristics of high elasticity, high performance and strong grinding force. Able to adapt to different materials and irregular surfaces, it is more flexible and effortless in applications than the Mounted Flap Wheel.

    Product Code:     H+Size(mm)+Grit(#)+Raw Material
    Raw Material
    Dimension
    Grit
