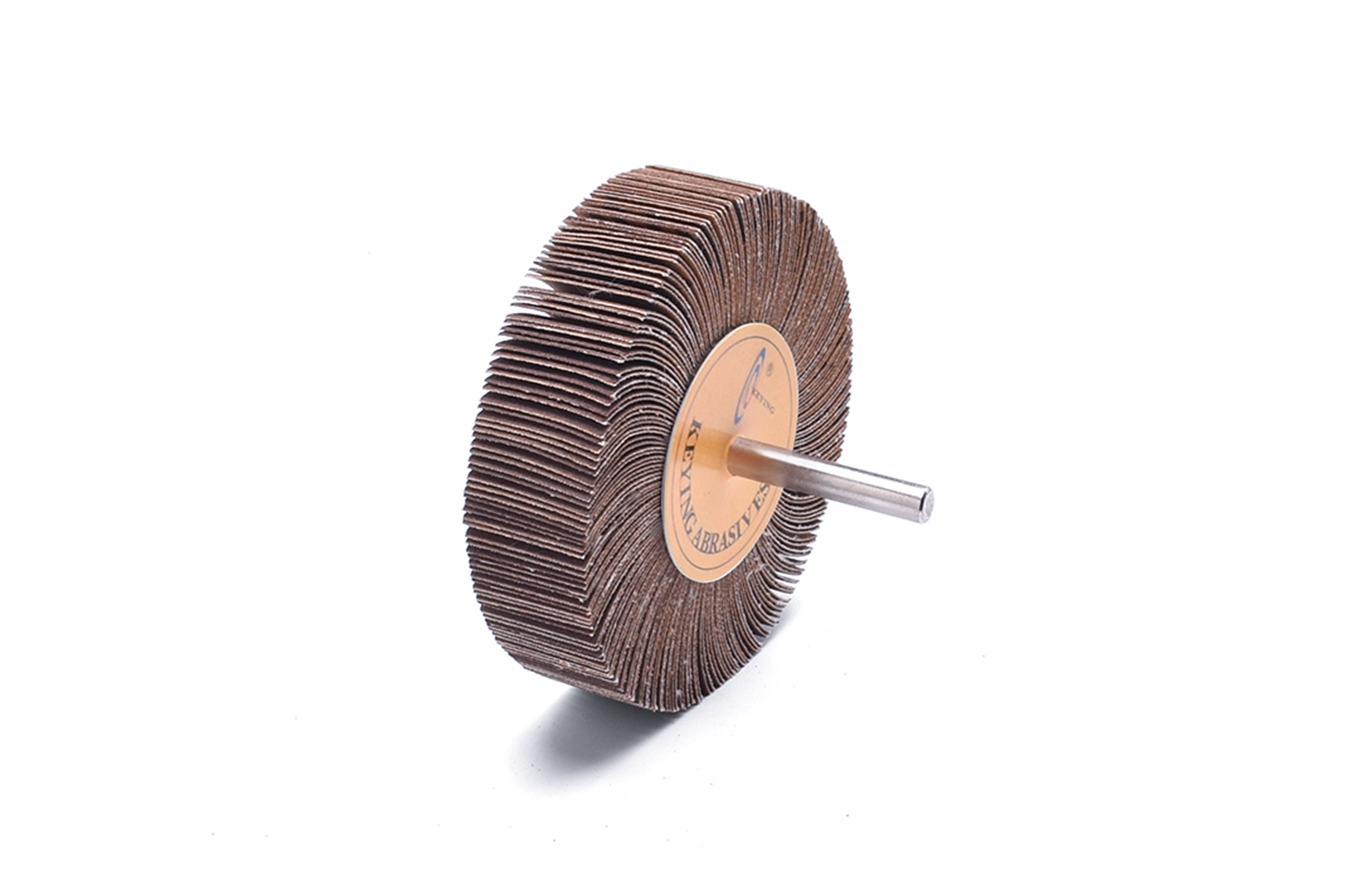

D=100 Standard Mounted Flap Wheel
Advantages:
1. High-Performance Grinding Power: Uses premium silicon carbide abrasive and abrasive cloth backing, providing strong grinding force suitable for high-precision processing.
2. Stable Synchronous Wear: The flap layers are evenly bonded and tightly wrapped, preventing looseness during high-speed rotation and ensuring stable grinding performance.
3. Long Service Life: The high-precision cutting process and high-quality materials make the product durable, reducing the risk of fragmentation or breakage, thereby extending its lifespan.
4. Low Dust Emission: Optimized design minimizes workplace dust, improving the working environment and meeting environmental protection requirements.
5. Refined Appearance: Manufactured with exquisite craftsmanship for an aesthetically pleasing look, enhancing the product texture.
Applications:
High Cost-Performance Ratio: Combines high-quality materials with advanced manufacturing processes, delivering superior performance while remaining cost-effective.
Casting Processing: With strong grinding power, it efficiently handles rough surfaces of cast parts, ensuring stable synchronous wear and low dust emission, thereby improving the working environment.
Hardware and Metal Component Processing: Precisely performs grinding and deburring, enhancing surface quality. The premium abrasive materials ensure strong grinding power and a uniform finishing effect, with no grit shedding.
Automotive, Aerospace, Rail Transit, and Shipbuilding: High-precision cutting prevents fragmentation and breakage. The imported bonding agent provides strong adhesion, ensuring that even at high-speed rotation, the product remains intact, with long service life to meet high-precision machining requirements.

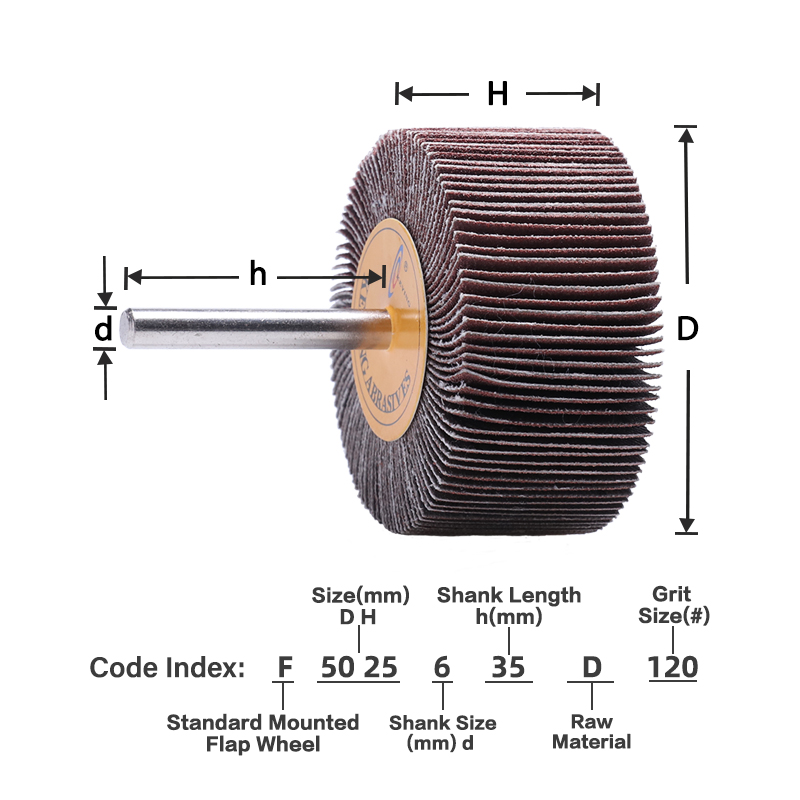

| Brand | KEYING | Origin Country | China | Product Code | F + 100*25*6 + 120 + AO ↓ ↓ ↓ ↓ Mounted Flap Wheel Conventional Models Size(mm) D * H * d Grit(#) Raw Material |
| Handle Length | 35mm Other length can be customized | Diameter | 100mm | Raw Meterial | Aluminium Oxide, Silicon Carbide Zirconium Corundum, Ceramic Alumina |
| Inner Hole Size | 6mm 6.35mm | Package Standard | 10pcs | Cloth Type | High Quality Domestic Cloth Imported Cloth |
| Maximum Speed | 9500RPM | Grit | 40#、60#、80#、120#、150# 180#、240#、320#、400#、600# | ||
| Application | Polishing and mirror polishing, marble polishing, metal workpiece mirror polishing, cleaning non-ferrous metal surface, the last step of polishing, cleanliness to achieve mirror effect | ||||
| Applicable Tools | Electric tools, pneumatic tools, electric mill, manipulator and other tools | ||||
| Applicable Materials | Stainless steel, non-ferrous metal, aluminum alloy products, glass, etc | ||||
| Applicable Industry | Machinery processing, hardware, casting, auto parts, aviation, high-speed cars, ships and other high precision processing manufacturing industries | ||||
| Grit Guide | ||||||||
| 40 | 60 | 80 | 120 | 180 | 240 | 320 | 400 | 600 |
| Preliminary processing of severe surface scratches | | | | | | | | |
| Remove rough burrs or bumps | | | | | | | | |
| Grind deeper kaser engraving marks or a brasive groove faces | | | | | | | | |
| Clean up rust, nicks or welds | | | | | | | | |
| | Pre-painting before painting | | | | | | | |
| | Medum-term polishing and smoothing | | | | | | | |
| | | Sight scratches or brushed finishes | | | | | ||
| | | | | Fine grindng and polishing | | | | |
| | | | | | Finishing and translucent processing of various metal surfaces | | ||
| | | | | | | | Mirror processing | |
