D=50 Standard Unmounted Flap Wheel
KEYING Unmounted Flap Wheel has three raw materials to choose from, so they can meet most customer needs. Different raw materials have different uses, you can choose according to your needs, we list the characteristics of these raw materials for your reference in the following introduction.
1.Aluminium Oxide (AO)
- It can grind and polish the workpiece surface to achieve better polishing effect.
- It can be used for grinding and polishing of workpiece surface of various materials.
- It is a commonly used grinding and polishing abrasive for workpiece surface polishing.
2.Silicon Carbide (SC)
- Silicon carbide is a kind of synthetic abrasive particle with sharp edge, low toughness and high hardness.
- Suitable for use in the aviation industry, especially silicon carbide is the only approved abrasive such as for engine parts.
- It is often used to process hard alloy, titanium alloy, high speed steel tool and other hard grinding materials.
3.Zirconia (ZR)
- It can grind and polish the workpiece surface to achieve better polishing effect.
- Mainly used for processing steel, cast steel, non-ferrous metals, cast iron, plastic and other materials.
- To meet the special needs and related requirements of aviation, automotive, electronics, communications and other ceramic applications.

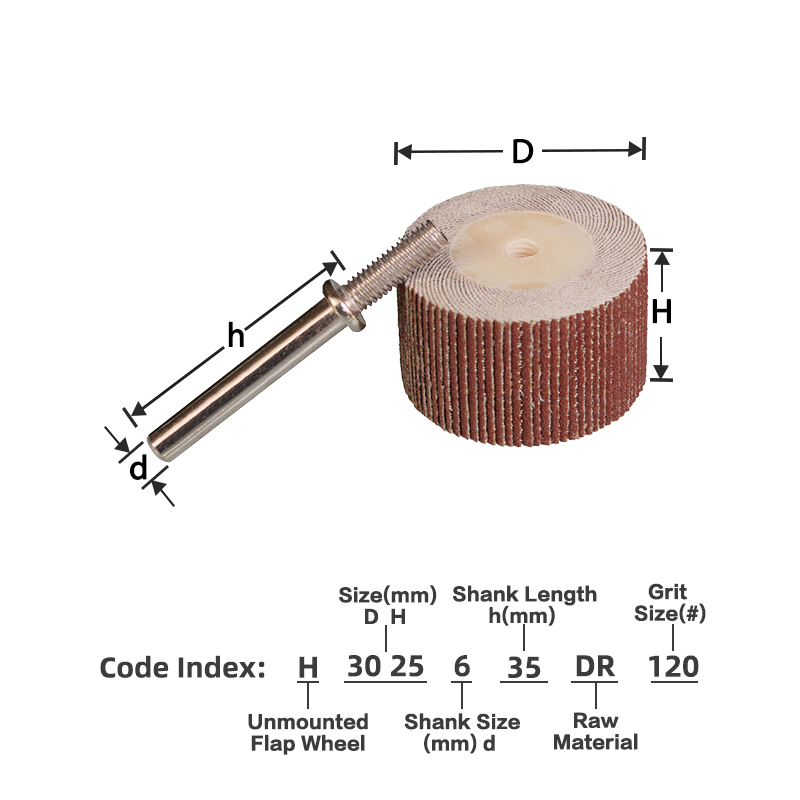

Brand | KEYING | Origin Country | China | Product Code | H + 50*5*6 + 320 + AO ↓ ↓ ↓ ↓ Umounted Flap Wheel Size(mm) D * H * d Grit(#) Raw Material |
Handle Length | 35mm Other length can be customized | Diameter | 50mm | Raw Meterial | Aluminium Oxide, Silicon Carbide Zirconia |
Inner Hole Size | 6mm 6.35mm | Package Standard | 20-50pcs | Cloth Type | High Quality Domestic Cloth Imported Cloth |
Maximum Speed | 15000RPM | Grit | 60#、80#、100#、120#、150# 180#、240#、320#、400#、600# Non-standard:800#、1000# | ||
Application | Metal surface treatment, rust removal, deburring, cleaning welding scar, cleaning coating, polishing, paint removal and pretreatment | ||||
Applicable Tools | Power tools, pneumatic tools, manipulator and other tools | ||||
Applicable Materials | Stainless steel, metal, non-ferrous metal, aluminum alloy products, cast iron, etc | ||||
Applicable Industry | Mechanical processing, hardware industry, foundry industry, auto parts, aviation industry, high-speed train, shipbuilding industry, other early finishing industries |
Height | Shank Sizes | Raw Material | Shank Length | Diameter |
√ | √ | √ | √ | √ |
![]() |
